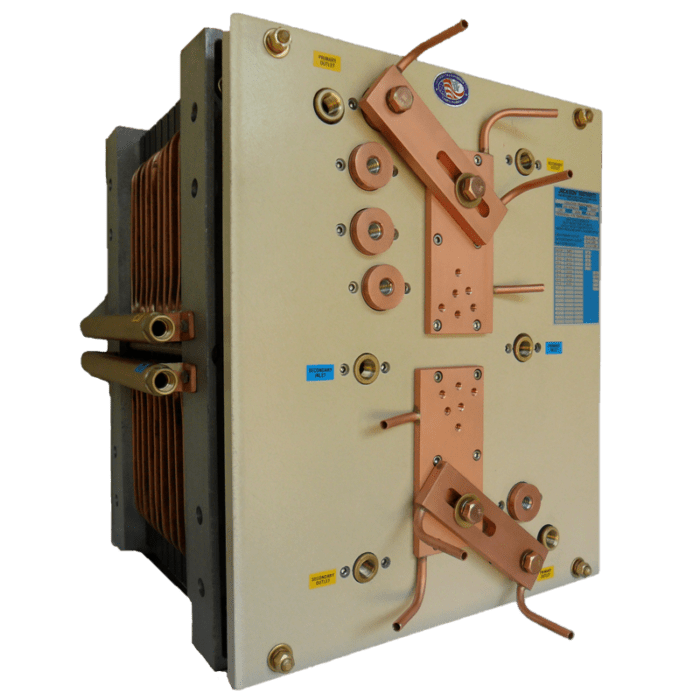

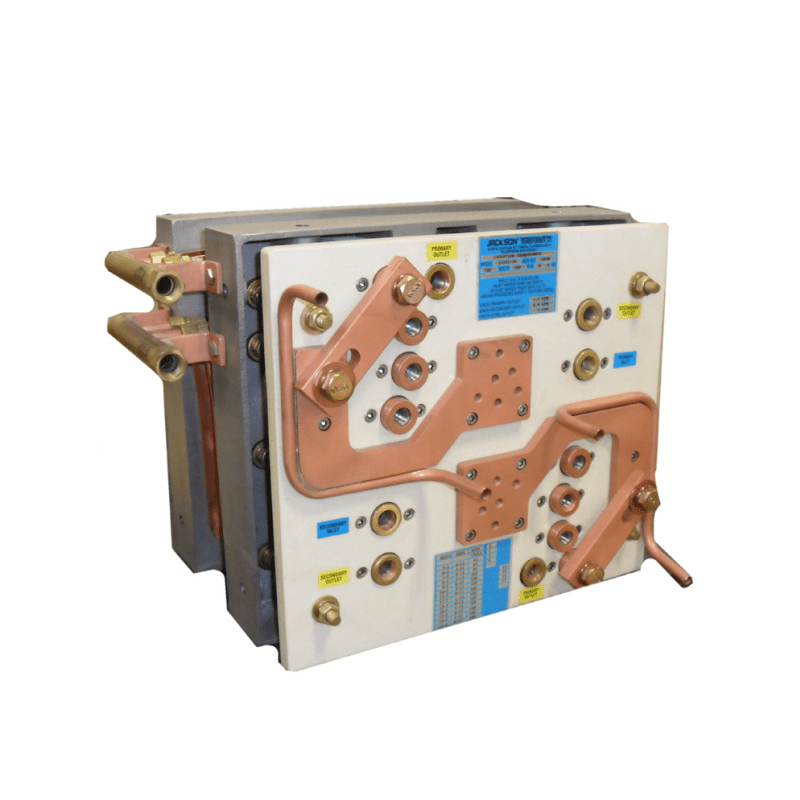

Medium Frequency Transformer
The JACKSON Medium Frequency Transformer is also known as the Load Matching/Work Station Transformer.
These Transformers are customized to meet customer requirements and are available in various ratings to match the appropriate load.
All designs are optimized utilizing our exclusive computer programs to ensure the highest quality product.
These Transformers are customized to meet customer requirements and are available in various ratings to match the appropriate load.
All designs are optimized utilizing our exclusive computer programs to ensure the highest quality product.
The JACKSON Load Matching/Work Station Transformers are the standard in the induction heating industry. They are a proven quality product with hundreds of designs and thousands of units operating continuously throughout the world since 1955.
Available from 200 to 4000 volts, 200 Hz to 25 kHz, up to 20,000 kVA. The water-cooled copper windings utilize a unique interleaved construction, which allows for a compact and efficient transformer. Windings are available in either open or encapsulated design.
The water-cooled cores are made utilizing special thin electrical-grade steel to minimize core and eddy current losses.

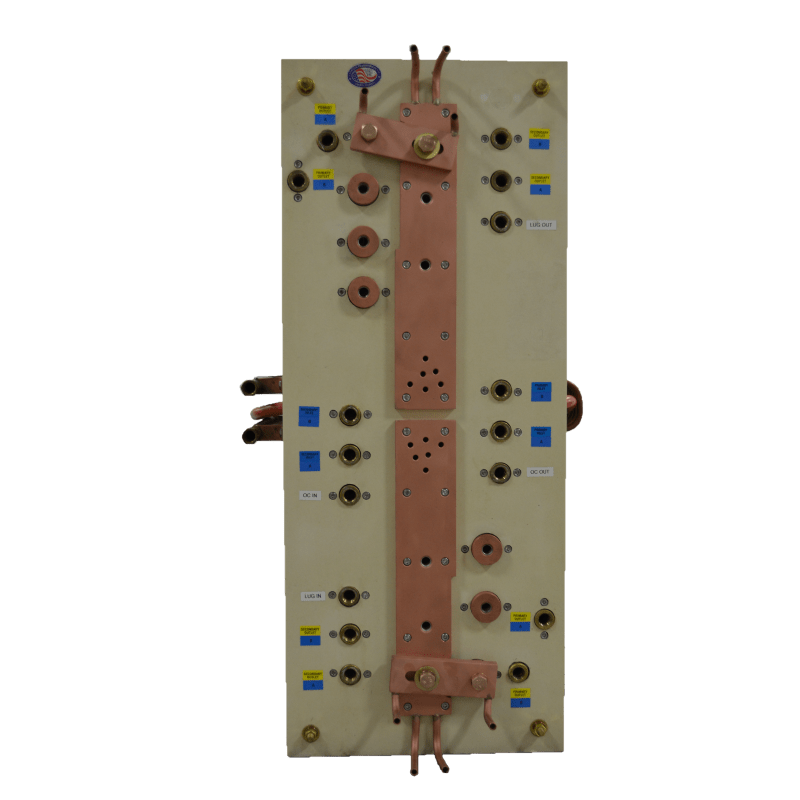

Tap changing is made easy with the JACKSON uniquely designed swing link tap changing arrangement. Input and output connections can be designed to meet your specific requirements.
Available in Metric or Standard U.S. Threads.
The JACKSON variable-ratio Load Matching/Work Station Transformer delivers a massive amount of power in a small package.
For a high-quality customized Load Matching/Work Station Transformer- Specify a JACKSON.
